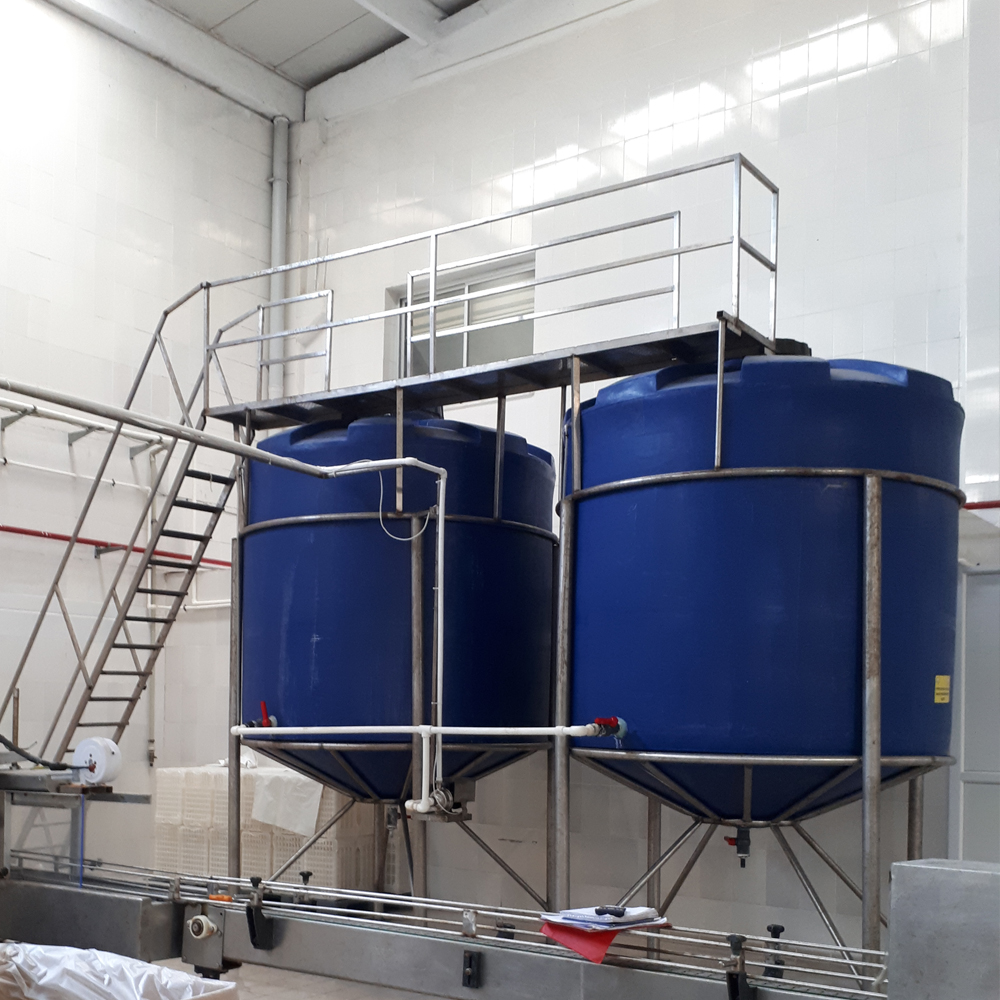

Conical PVC Brine Preparation Tank with Chrome Platform

```html

Conical Type PVC Tank Brine Preparation with Chrome Platform – Industrial Liquid Preparation and Automatic Line Filling System

Designed to combine liquid preparation and packaging filling processes, which are among the most critical stages of pickle, olive and canned food production in food production facilities, this Conical Type PVC Tank Brine Preparation System is a highly efficient combined engineering solution. The complex system has an infrastructure of 2 units of 1000-liter mixer tanks that enable salt, acid and preservative additives to dissolve quickly in water, and 1 unit of pallet belt filling machine integrated into these tanks. Box and jar packages are transported smoothly on a pallet conveyor belt and sent to the liquid filling unit. It is optimized to perform precise filling from 1/2 liter to 5 liters in all packaging sizes in a highly regular, serial and non-overflow manner.

Developed with UMSEMAK quality, which has been producing long-lasting and reliable solutions for the food industry since 1992, the chassis of this system is manufactured from AISI 304 CrNi stainless steel profile. All other mechanical components and valve groups that are in direct contact with brine liquid containing continuously high acid and salt content are manufactured from AISI 316 CrNi premium stainless steel material that provides maximum resistance to corrosion. The safe chrome platform design that enables operators to add raw materials and monitor the process in full compliance with occupational safety rules increases operational comfort. With a total motor power of 3.7 kW and compact dimensions of 3 x 10 meters, this integrated filling line saves space in factories, while reducing labor costs and bringing your production accuracy to global standards.

Highlighted Technical and Functional Features:

• Combined Preparation and Filling: Offers 2 x 1000-liter powerful mixer tanks integrated with an automatic filling unit with pallet conveyors in one package.

• Wide Packaging Filling Range: Thanks to flexible mechanical adjustment, it performs regular filling for all glass jar or tin can formats between 1/2 lt and 5 lt.

• Superior Material Quality (AISI 316): Thanks to its high-resistance steel structure used on liquid-contact surfaces, it guarantees stainlessness even in the most aggressive salty/acidic environments.

• Safe and Sturdy Chrome Platform: Industrial ladder platform design that allows operators to easily access the top of the tanks and load raw materials.

• Optimized Power and Space Balance: While providing maximum energy savings with 3.7 kW total motor power consumption, it covers 3 x 10 m area and uses the production area efficiently.

```
